Air Inlet Screen

SCREEN-AIR INLET

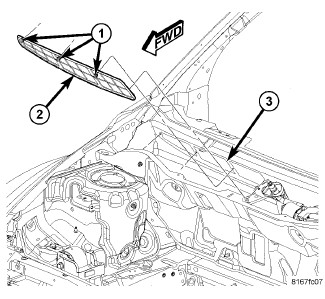

NOTE: LHD model shown. RHD model similar.





1. Position the HVAC housing air inlet screen (2) to the cowl panel (3) and fully engage the three push-in retainers (1) that secure the screen to the panel.
2. Install the cowl grille screen Cowl Panel Cover - Installation.
