Air Inlet Housing

HOUSING-AIR INLET

NOTE: LHD model shown. RHD model similar.

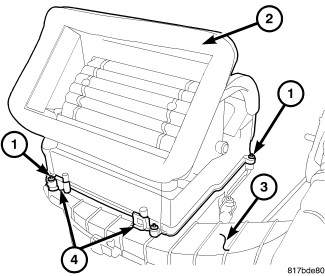

1. Install the air inlet housing (2) onto the top of the HVAC housing (3) and engage the two plastic retaining tabs (4). Make sure the retaining tabs are fully engaged.
2. Install the four screws (1) that secure the air inlet housing to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).
3. If equipped, install the particulate air filter Particulate Air Filter - Installation.
4. Install the HVAC housing assembly HVAC Housing - Installation.
