Accessory Drive Idler Pulley - Installation






3.6L

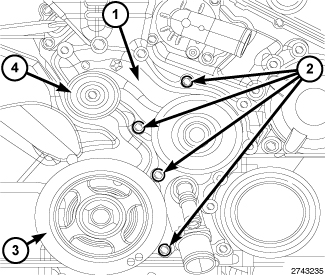

1. Install bolt for idler pulley (4).
2. Install the air intake system.
3. Raise vehicle.
4. Install main drive belt Serpentine Accessory Drive Belt - Installation.
