Rear

REMOVAL





1. Remove the belly pan.
2. Remove two bolts (1) and the rear engine mount heat shield (2).





3. Remove the bolt (3) from the rear engine mount isolator.
4. Remove four bolts (2) and the rear engine mount bracket (1).

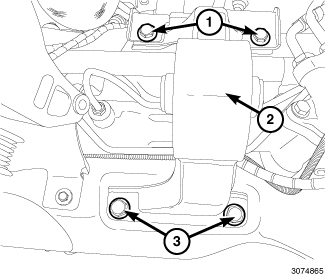

5. Remove bolts (1 and 3) and the rear mount (2).
