Left






REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the air cleaner body Air Cleaner Body - Removal.
3. Remove the front fore and aft crossmember Crossmember - Removal.
4. Lower the vehicle.




5. Carefully position a floor jack under transmission to support the transmission.

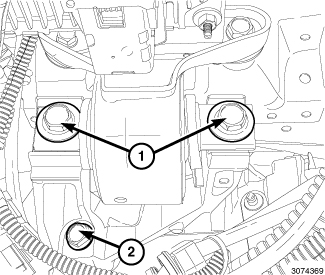

6. Remove the two transmission mount to transmission bolts (1).
7. Remove the PCM Engine - Removal.





8. Raise the vehicle up enough to gain access to the two lower transmission isolator bolts (3).

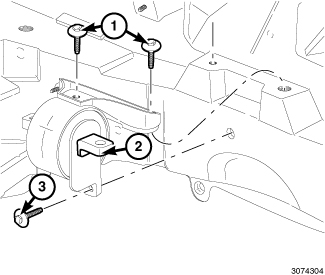

9. Remove the two upper bolts (1) and one lower bolt (3) from the left transmission mount isolator (2).
