Cooling Fan - Removal

REMOVAL










1. Disconnect negative cable from auxiliary terminal.
2. Disconnect radiator fan electrical connector.
3. Remove the screws that secure the wiring harness loom to the upper radiator core support.
4. Partially drain cooling system Service and Repair.
5. Remove upper radiator hose at radiator.

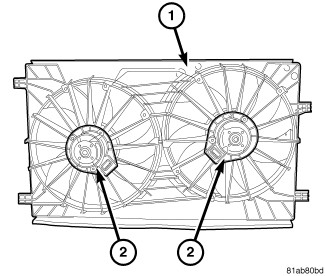

6. Remove the oil indicator tube to help aid in the fan assembly removal.
7. Remove fasteners and upper clip attaching fan assembly to radiator.
8. Remove radiator fan assembly by lifting upward.
