Latch, DECKLID: Removal: Removal

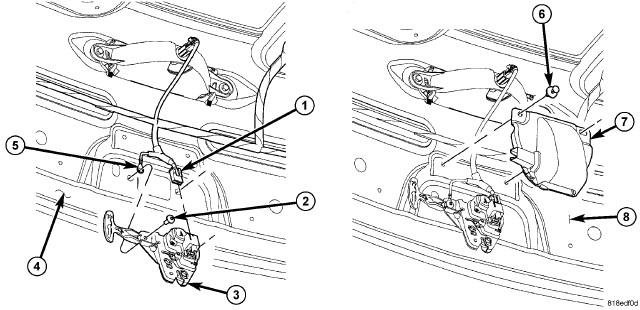

Fig 1: Decklid, Latch, Panel & Bolts
GC0122915Courtesy of CHRYSLER GROUP, LLC
  1. Release decklid latch and open decklid.
  2. Mark outline of decklid latch on decklid to aid in installation.
  3. Disconnect wire connectors to remote release solenoid, if so equipped.
  4. Remove bolts (2) attaching decklid latch to decklid.
  5. Remove decklid latch (3) from vehicle.
