Convertible Top, Convertible Soft Top Unique Components: Description: Description

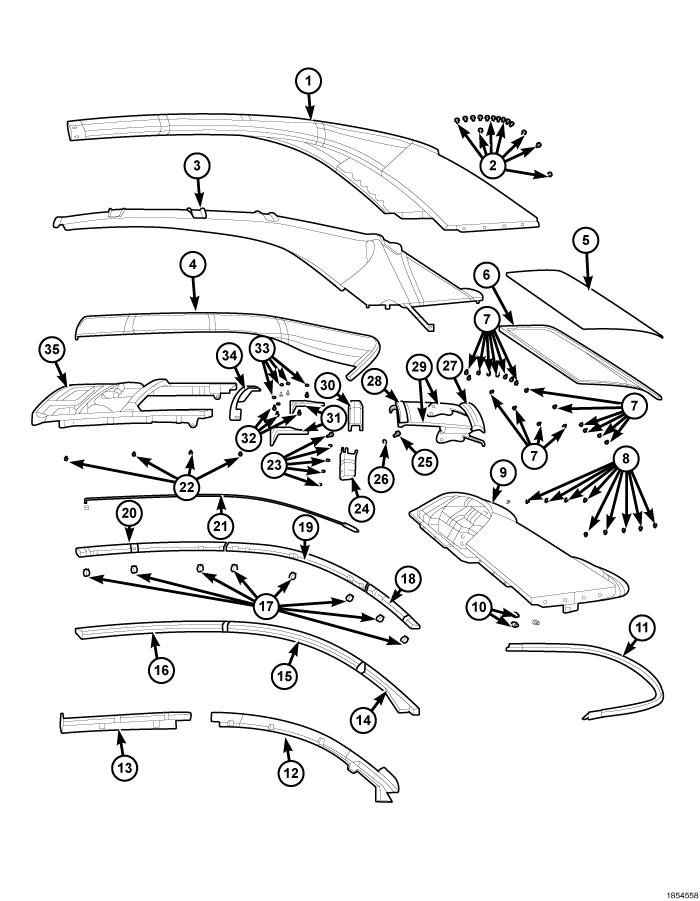

Fig 1: Convertible Soft Top (CST) Panels, Weatherstrips & Fasteners

Courtesy of CHRYSLER GROUP, LLC

1. COVER, Folding Top	19. RETAINER, Weatherstrip
2. PINS	20. RETAINER, Weatherstrip
3. HEADLINER	21. CABLE, Folding Top Cover Tension
4. PAD, Folding Top Insulator	22. SCREW
5. TAPE, Butyl, Tape kit	23. PUSH PIN
6. BACKLITE	24. PANEL, Folding Top Trim
7. SCREW	25. SCREW
8. NUT	26. BOLT
9. PANEL, Folding Top Rear	27. BOW, Folding Top Number 3
10. SCREW	28. BOW, Folding Top Number 2
11. SEAL, Rear	29. BRACKET
12. PANEL, Folding Top Trim	30. RETAINER
13. PANEL, Folding Top Trim	31. PIN, Locating
14. WEATHERSTRIP, Folding Top Side Rail Rear	32. SCREW
15. WEATHERSTRIP, Folding Top Side Rail Middle	33. WASHER
16. WEATHERSTRIP, Folding Top Side Rail Front	34. RETAINER
17. SHIM	35. HEADER, Folding Top
18. RETAINER, Weatherstrip

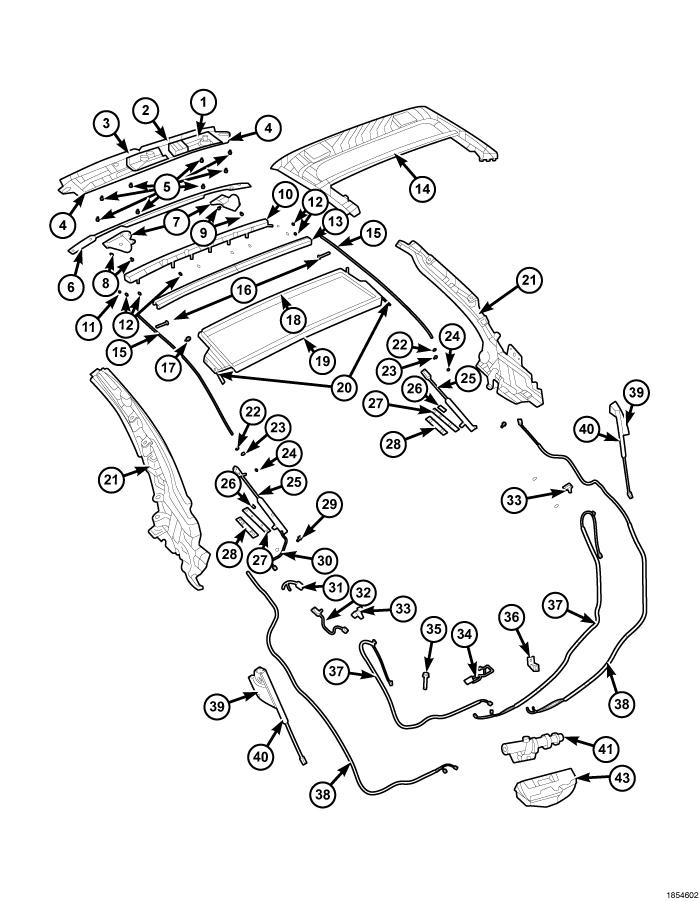

Fig 2: Convertible Soft Top (CST) Attaching Parts

Courtesy of CHRYSLER GROUP, LLC

1. PLATE ASSEMBLY, Folding Top Header Latch	23. BUMPER, Folding Top
2. SWITCH, Folding Top	24. CLIP
3. MOTOR, Folding Top Header Latch	25. CYLINDER, Hydraulic
4. SWITCH, Folding Top Header Latch	26. SCREW
5. SCREW	27. PLATE, Folding Top Mounting
6. RETAINER	28. PLATE, Reinforcement, Sliding Z-Bracket
7. PIN, Locating	29. BUMPER
8. SCREW	30. SENSOR, Folding Top
9. WASHER	31. SWITCH, Folding Top
10. PANEL, Folding Top Trim	32. SENSOR, Folding Top
11. SCREW	33. HARDWARE KIT
12. SCREW	34. WIRING, Jumper, Folding Top Hydraulic Pump
13. RETAINER	35. CLIP
14. HEADER, Folding Top	36. CLIP
15. CABLE, Folding Top Cover Tension	37. TUBE ASSEMBLY, Folding Top Hydraulic
16. BOLT	38. TUBE ASSEMBLY, Folding Top Hydraulic
17. BOLT	39. BRACKET, Hydraulic Cylinder
18. BOW, Folding Top, Number 2	40. CYLINDER, Folding Top Hydraulic
19. BOW, Folding Top, Number 3	41. PUMP ASSEMBLY, Folding Top
20. BRACKET	42. FLUID, Hydraulic
21. SIDE RAIL, Folding Tip	43. MOUNTING KIT, Folding Top Pump and Motor
22. SCREW
