Front Wiper Motor - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove wiper module. Wiper Arm Linkage - Removal.
3. Using a pry bar or equivalent, gently pry off linkage off motor crank arm ball stud.

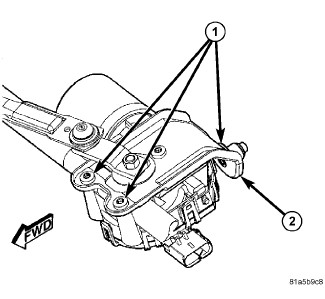

4. Remove the three retaining bolts (1) to wiper module (2) and remove motor.
