Wiper Arm Linkage - Removal

REMOVAL





1. Disconnect and isolate the battery negative remote cable.
2. Remove wiper arms and blades Front Wiper Arm - Removal.
3. Remove the cowl screen Cowl Panel Cover - Removal.

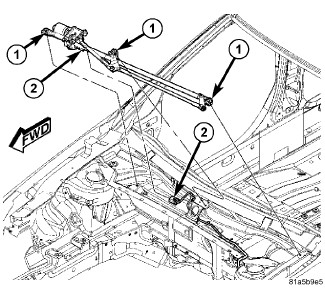

4. Remove the three wiper motor assembly mounting screws (1).
5. Disconnect wire connector (2) at motor and remove assembly.
