Stationary Glass






REMOVAL






NOTE: The rear stationary door glass is part of the rear glass run channel and window weather-strip.

1. Remove door glass Rear Door Glass - Removal.

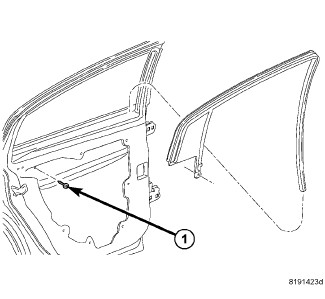

2. Remove one bolt (1) to rear glass run and pull down out of door channel with weather-strip Rear Door Glass Channel - Removal.
