Non-Stationary Glass

REMOVAL





1. Remove door trim panel Rear Door Trim Panel - Removal.

NOTE: The carrier plate must be removed to allow the glass to fall to the bottom of the door and twisted/maneuvered out the top of the door.

2. Remove carrier plate Rear Door Carrier Plate - Removal.
3. Remove inner belt moulding

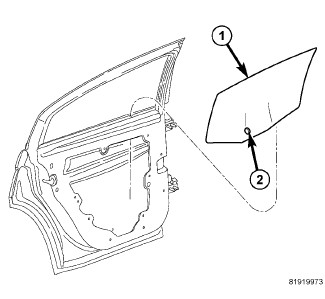

4. Lower window all the way down and maneuver so the window can be taken out through top door slit.
