Front

FRONT SENSOR





1. Disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

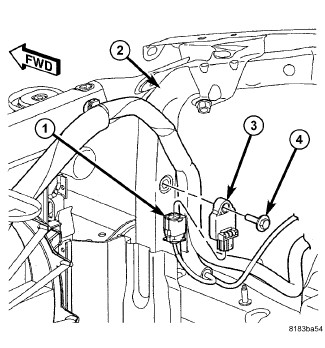

2. Remove the screw (4) that secures the front impact sensor (3) to the back of the right or left radiator support vertical member (2).
3. Disconnect the electrical connector (1) from the sensor (3).
4. Remove the front impact sensor from the engine compartment.
