Evap Purge Solenoid - Removal

REMOVAL





1. Disconnect and isolate negative battery cable at battery.
2. Remove the PCM, Powertrain Control Module - Removal.

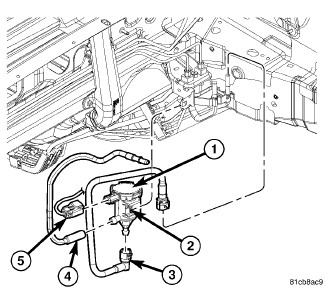

3. Disconnect electrical connector (5) from evaporator purge solenoid (1).
4. Remove purge hose (4) from evaporator purge solenoid (1).
5. Remove quick connect fuel tank hose (3) from evaporator purge solenoid (1).
6. Release tab (2) to remove evaporator purge solenoid (1) from bracket.
