Drive Belt: Description and Operation

DESCRIPTION

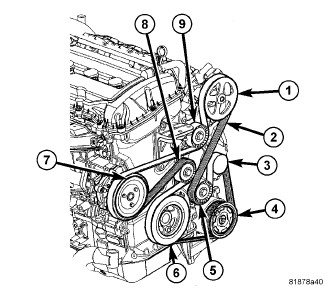

Figure 1 - ACCESSORY DRIVE BELT - WORLD ENGINE
The accessory drive belt for all engines is a Poly-V type belt.

The accessory drive belt for the 2.0,2.4L and 3.6L engines drive the generator, A/C compressor, and power steering pump.





Accessory drive belt tension for all engines is maintained by a non-adjustable automatic drive belt tensioner.
