Camshaft Sprocket(s)






CAMSHAFT SPROCKET(S)






NOTE: The camshaft sprockets and the camshaft phasers are an assembly and cannot be serviced separately.

CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin and camshaft phaser may occur.

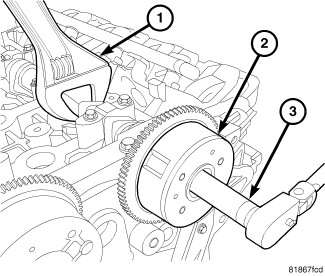

1. Refer to Camshaft phaser (2) installationCamshaft - Installation.
