Engine Timing Tensioner - Removal

REMOVAL





1. Remove the engine timing cover Engine Timing Cover(s) - Removal.

NOTE: Tensioner will not come apart during removal.

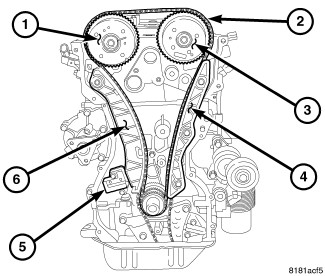

2. Remove timing chain tensioner retaining bolts and remove tensioner (5).
