Engine Timing Tensioner - Installation

INSTALLATION

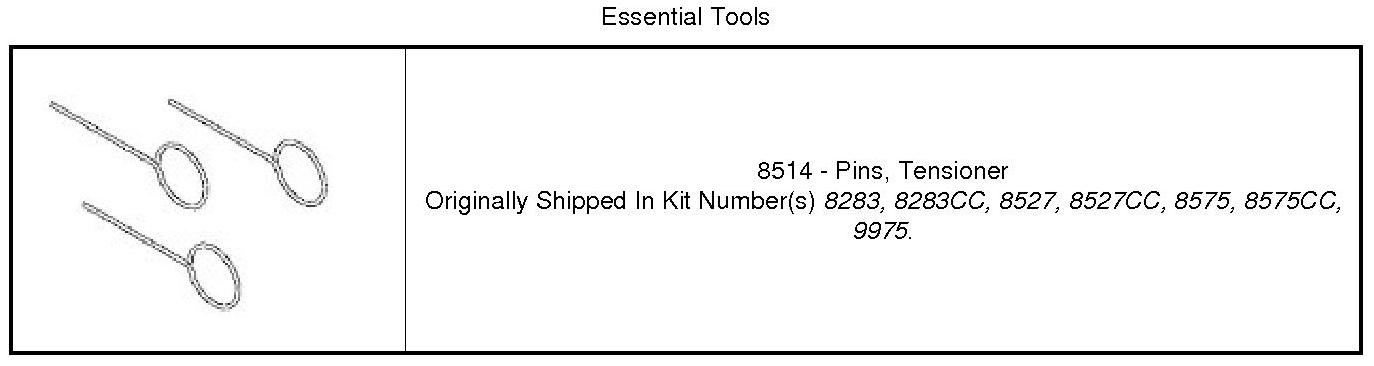

Special Tools:










1. Reset timing chain tensioner (4) by lifting up on ratchet (2) and pushing plunger (3) inward towards the tensioner body (4). Insert Tensioner Pin into slot (1) to hold tensioner plunger in the retracted position.






NOTE: Keep the slack in the timing chain on the tensioner side.

2. Install timing chain tensioner (1) and tighten bolts to 12 Nm (105 in. lbs.).
3. Remove timing Tensioner Pin (2).
4. Install the engine timing cover Engine Timing Cover(s) - Installation
