Right






REMOVAL

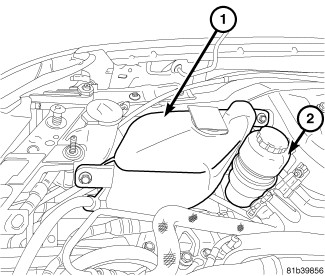

1. Remove coolant reservoir (1) and set aside.





2. Remove power steering line support bracket (3) from engine mount.
3. Support transaxle with a block of wood and a suitable jack.

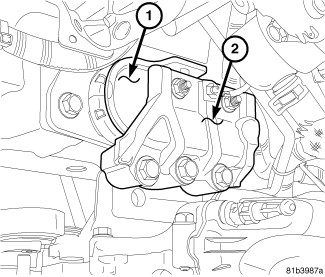

4. Remove engine mount bracket (2) retaining bolts.

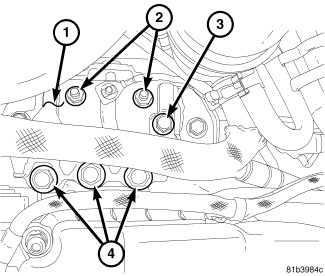

5. Remove engine mount isolator bolts.
6. Remove engine mount isolator (1).
