Pressure System

PRESSURE SYSTEM

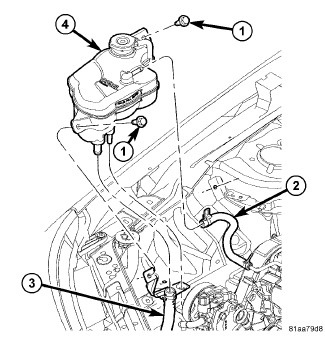

1. Connect hose (3) to coolant recovery container (4).
2. Install coolant recovery container (4) in mounting position and install mounting bolts (1) Tighten bolts to 10 Nm (89 in. lbs.).
3. Connect return hose (2) to the coolant recovery container (4).
4. Fill cooling system Service and Repair.
