Mid Panel Weatherstrip

MID PANEL WEATHERSTRIP





1. Position top to the vertical position, Convertible Top - Description.
2. Using a trim stick or equivalent, gently remove both push pins (2) in the bottom of the right and left center rail trim (1).
3. Gently pry off both left and right center rail trim.

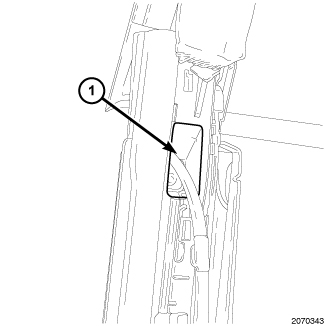

4. Disengage front and rear drain tubes (1) from each side.

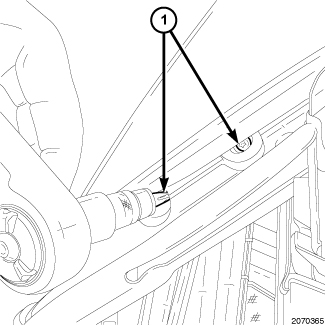

5. Remove eight fasteners (1), two per corner, from the mid panel weatherstrip.

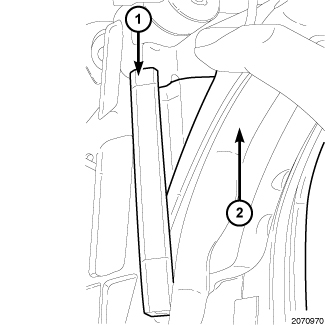

6. Carefully pull side rail portion of the weatherstrip (2) away from the seal retainer (2).
7. Carefully pull cross-car portion of the seal away from the panel.
8. Lift seal around mid panel and remove from vehicle.
