Side Panel Weatherstrip

SIDE PANEL WEATHERSTRIP






NOTE: Soapy water can be used to assist installation.

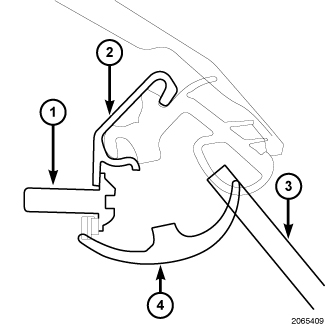

1. Insert weatherstip (4) into retainer (2).
2. Use either a trim stick or your thumbs to push the side of the seal into the retainer. You will feel it pop into place when it is properly seated.
3. Perform water test to check for leaks, Water Leak Test.
