Header Weatherstrip

HEADER WEATHERSTRIP





1. Position header weatherstrip (2) into place.





2. Install foam (1) to the weatherstrip.

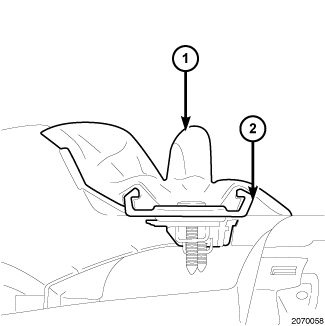

3. Install header weatherstrip (1) into retainer (2).






NOTE: Make sure the weatherstrip covers the retainer (1).

4. Install tape to outboard corners (2 top graphic).
5. Install header weatherstrip into both A-Pillars.
6. Close top and doors.
7. Perform water test, Water Leak Test.
