Convertible

INSTALLATION





1. Transfer seat switches, if equipped.
2. Connect switch wire connectors to cushion side shield, if equipped.
3. Place shield in position on seat. Starting at the front of the side shield, ensure the locator tab is in the correct position.
4. Slide the shield rearward and engage the middle spring retainer and the rear plastic clip.

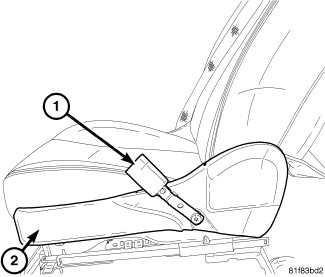

5. Install seat belt buckle (1). Tighten seat belt anchor bolt to 45 Nm (33 ft. lbs.).
6. Install recliner handle.Seat Handle - Installation
7. Install seat into vehicle. Seat - Installation.
