Front Seat Back Recliner - Installation

INSTALLATION

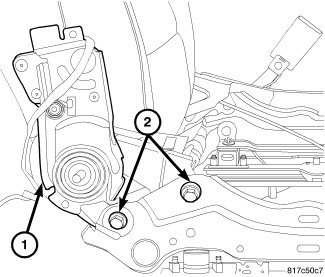

1. Place seat back recliner (1) into position.
2. Install the seat back recliner right and left bolts (2).
3. Tighten pivot bolts to 40 Nm (30 ft. lbs.).
4. Route the electrical harness and connectors between the seat back and the seat cushion.
5. Connect and secure the electrical connectors.
6. Install the seat cushion side shields.Seat Cushion Side Shields - Installation
7. Install the front seat to the vehicle.Seat - Installation
