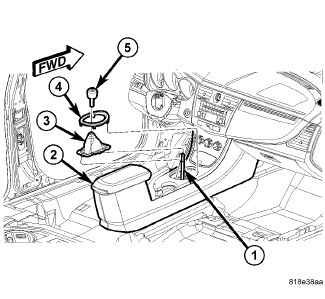

1. Locate bezel (4) over shifter lever (1) and into shifter pod.
2. Insert bezel locator to shifter pod.
3. Apply hand pressure to bezel (4) until clips are seated.
4. Slide boot (3) over shift lever (1) to bezel (4).
5. Apply hand pressure to snap bottom of boot (3) into bezel (4).
6. Snap shifter knob (5) onto shifter lever (1).
7. Pull up on knob to verify seated correctly.
