Rear Door - Removal

REMOVAL






NOTE: If replacing door, transfer all parts.

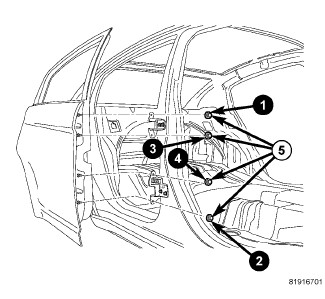

1. Open and support door on a suitable lifting device.
2. Disengage wire connector at hinge B-pillar.
3. Remove nuts (5) attaching door studs to hinges.
4. Remove the door from vehicle.
