Differential Carrier Bearing - Removal





REMOVAL

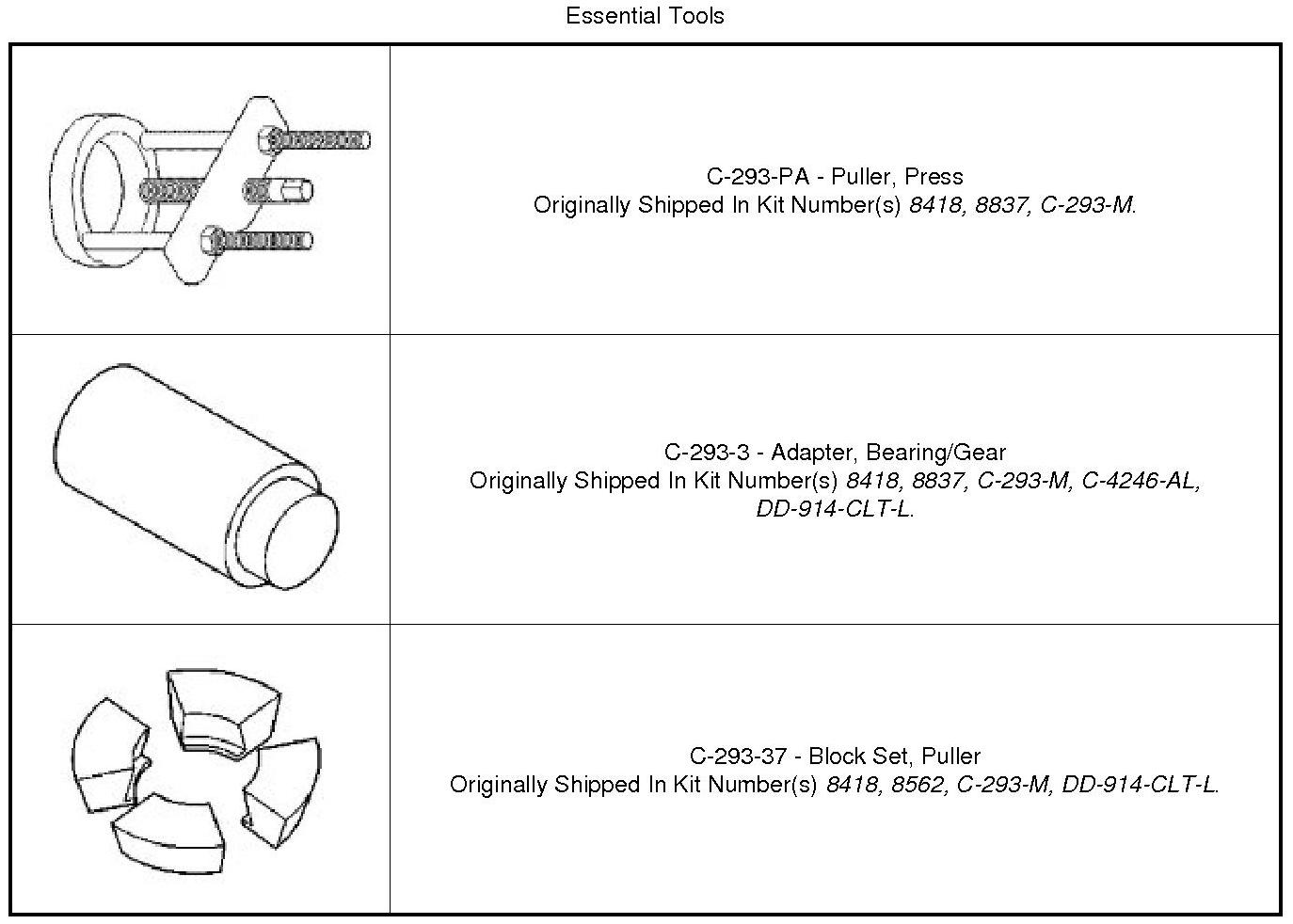

Special Tools:






1. Remove the differential case assembly Differential Carrier - Removal

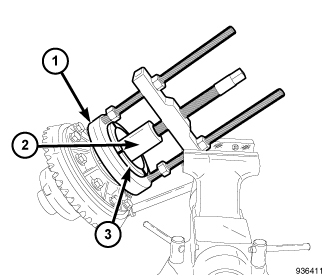

2. Remove the Differential Bearings from the case with Puller Press C-293-PA (1), Bearing/Gear Adapter C-293-3 (2) and Adapter Blocks C-293-37 (3).
