Rear Suspension Compression Link - Removal

REMOVAL

1. Raise and support vehicle. Maintenance





2. Remove wheel mounting nuts (3), then rear tire and wheel assembly (1).

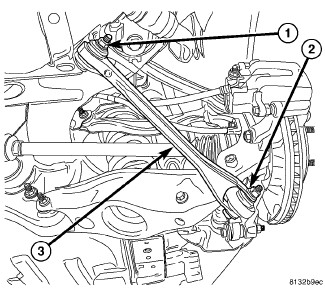

3. Remove bolt and nut (2) mounting link (3) at knuckle.
4. Remove bolt and nut (1) mounting link (3) at crossmember.
5. Remove link (3).
