Crankshaft Position Sensor - Removal

3.6L





1. Disconnect and isolate the negative battery cable (1).





2. Raise and support the vehicle Maintenance.
3. Remove the belly pan retainers (1) and remove the belly pan.





The crankshaft position (CKP) sensor is mounted into the right rear side of the cylinder block.

4. Push back the heat shield (1) from the crankshaft position (CKP) sensor.

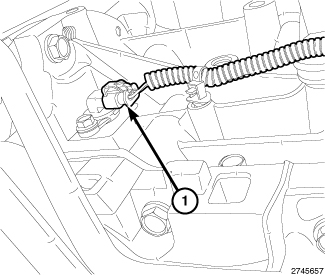

5. Disconnect the electrical connector (1) from the crankshaft position (CKP) sensor.

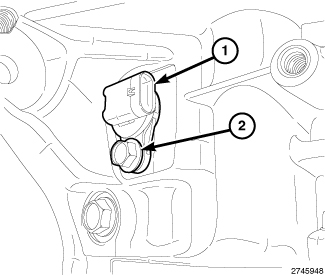

6. Remove the sensor mounting bolt (2).
7. Carefully twist the sensor (1) from the cylinder block.

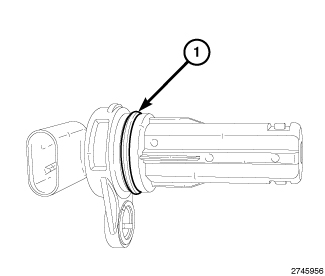

8. The CKP sensor O-ring (1) can be reused if not damaged.
