Door Lamp

REMOVAL






NOTE: The courtesy lamp is illuminated by an LED and is only serviced as an LED unit.

1. Disconnect and isolate the battery negative cable.

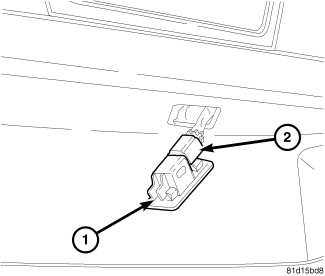

2. Using a trim stick or equivalent and gently pry the LED (1) unit from the door panel.
3. Disconnect the electrical (2) connector from the LED unit.
