Cupholder Lamp

INSTALLATION

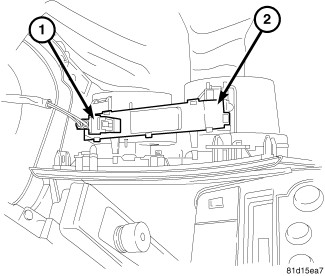

1. Install the LED lamp (2) into the center console trim by flexing the lock tabs.
2. Connect the electrical connector (1) to the lamp unit.

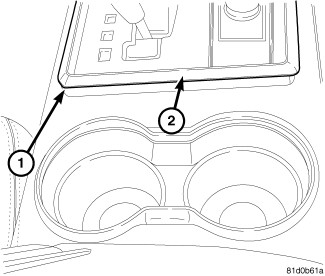

3. Install the console trim (1) to the center console.
4. Install the shifter trim ring (2) to the console
5. Connect the negative battery cable.
