Removal

REMOVAL










1. Raise vehicle.

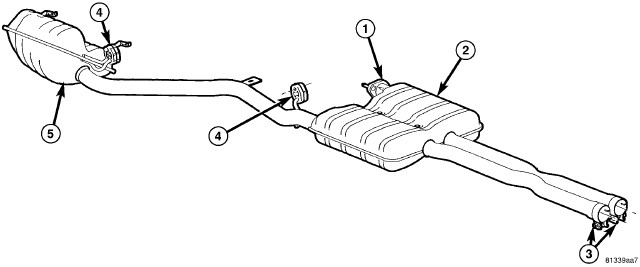

2. Remove catalytic converter to muffler and resonator clamps (2).










3. Remove nuts (1) and tunnel reinforcement (2).










4. 3.6L/5.7L Engines -If equipped, remove LH resonator and tailpipe assembly Exhaust Resonator - Removal.
5. Remove isolators (4).
6. Remove muffler and tailpipe assembly (5) by twisting/turning while pulling assembly out of catalytic converters.
