Air Cleaner Body - Removal

REMOVAL - AIR CLEANER BODY





1. Disconnect and isolate the negative battery cable.

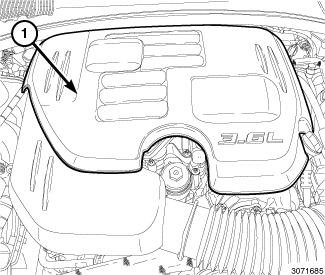

2. Lift the engine cover retaining grommets off the ball studs and remove the engine cover (1).

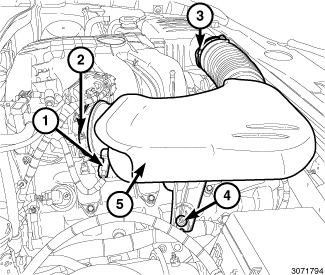

3. Disconnect the electrical connector (1) from the Inlet Air Temperature (IAT) sensor.
4. Loosen the clamp (2) at the throttle body.
5. Loosen the clamp (3) at the air cleaner housing.
6. Lift the air inlet hose assembly retaining grommet off the ball stud (4).
7. Remove the air inlet hose assembly (5).

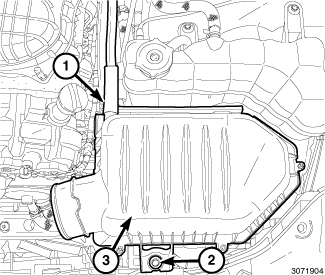

8. Disconnect the fresh air makeup hose (1) from the air cleaner housing.
9. Remove the air cleaner housing retaining bolt (2).
10. Remove the air cleaner housing (3).
