Rear

REMOVAL - REAR ENGINE MOUNT INSULATOR





1. Raise and support the vehicle Maintenance.
2. Remove the belly pan, if equipped Belly Pan - Removal.
3. Remove four bolts (2) and the left crossmember brace (1).
4. Remove two bolts (3) and the right crossmember brace (4).





5. Remove the two bolts (2) from the rear engine mount isolator.
6. Using a suitable jack stand and a block of wood positioned under the transmission oil pan, raise the transmission until the weight is off of the isolator (approximately 5 mm).
7. Remove six bolts (3) and the crossmember (1).





8. On 4x4 vehicles, remove three bolts (2) and the rear engine mount isolator (1).





9. On 4x2 vehicles, remove three bolts (2) and the rear engine mount isolator (1).

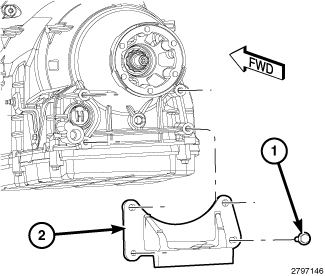

10. On 4x2 vehicles if required, remove four bolts (1) and the rear engine mount bracket (2).
