Instrument Panel Glove Box Door - Removal

GLOVE BOX DOOR

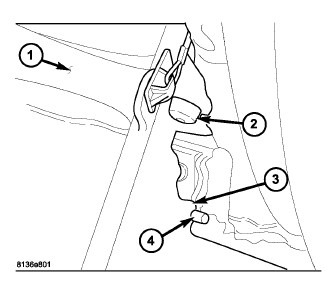

1. Open the glove box bin (1).
2. Push in on both sides of glove box bin to disengage the glove box stops (2) and lower the bin.
3. Pivot the glove box bin downward and disengage the glove box hinge hooks (3) from the instrument panel hinge brackets (4) located at each end of the bin.

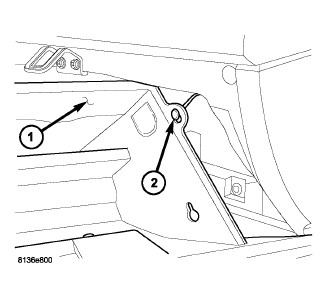

4. Turn the glove box bin (1) sideways and remove the support strap and retainer assembly (2) from the outboard end of the bin.
5. Remove the glove box bin from the vehicle.
