Front Door





FRONT DOOR





1. Disconnect the negative battery cable.
2. Remove the door trim panel Front Door Trim Panel - Removal.

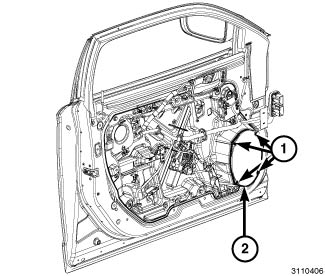

3. Remove the speaker retainers (1).

NOTE: Hold the speaker while disconnecting the speaker electrical connector.

4. Disconnect the speaker electrical connector from the speaker (2).
