Home >> Chrysler >> 2011 >> 300 V6-3.6L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Speaker - Installation >> Subwoofer

Subwoofer

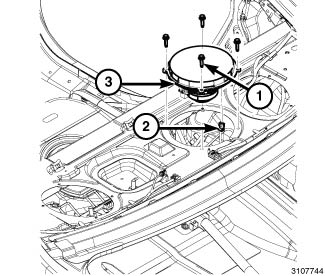

SUBWOOFER





1. Connect the subwoofer electrical connector (2).
2. Position the subwoofer (3) into the rear shelf.
3. Install the subwoofer retainers (1).
4. Install the rear shelf cover Rear Shelf Panel - Installation.
5. Connect the negative battery cable.
