Rear Shelf

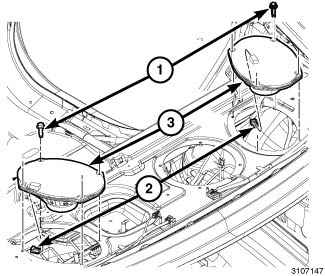

REAR SHELF





1. Connect the speaker electrical connector (2).
2. Position speaker (3) into the rear shelf.
3. Install the speaker retainers (1).
4. Install the rear shelf cover Rear Shelf Panel - Installation.
5. Connect the negative battery cable.
