PICK-UP, Oil Pump: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
Fig 1: Negative Battery Cable
GC0139402Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable (1).

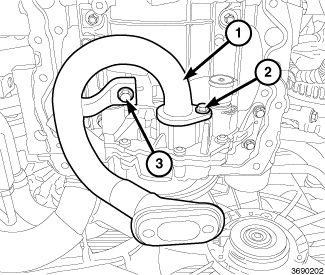

    Fig 2: Oil Pump Pick-Up Tube & Support Bracket Retaining Bolts
    GC0144952Courtesy of CHRYSLER LLC
  2. Remove the upper oil pan. Refer to PAN, Oil , Removal .
  3. Remove the oil pump pick-up tube support bracket retaining bolt (3).
  4. Remove the oil pump pick-up tube retaining bolt (2) and remove the pick-up tube (1) from the oil pump.

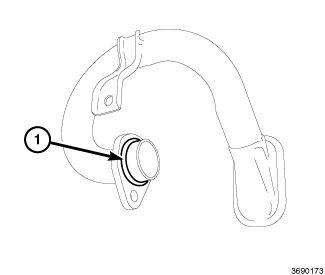

    Fig 3: Oil Pump Pick-Up Tube O-Ring Seal
    GC0144951Courtesy of CHRYSLER LLC
  5. Remove and discard the O-ring seal (1) from the oil pump pick-up tube.
