Air Cleaner: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

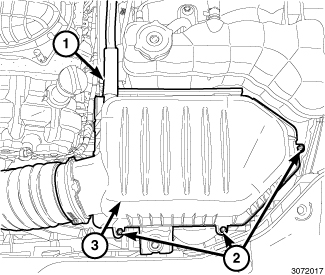

Fig 1: Fresh Air Makeup Hose, Air Cleaner Housing & Retaining Bolts
GC0144649Courtesy of CHRYSLER LLC
  1. Remove the fresh air makeup hose (1) at the air cleaner housing (3).
  2. Remove the air cleaner housing cover retaining bolts (2).
    CAUTION:

    Do not use compressed air to clean out the air cleaner housing without first covering the air inlet to the throttle body. Dirt or foreign objects could enter the intake manifold causing engine damage.

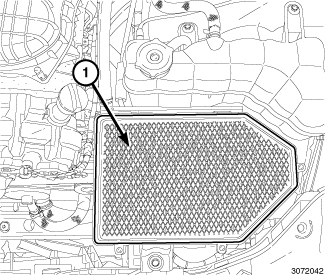

    Fig 2: Air Cleaner Element
    GC0144650Courtesy of CHRYSLER LLC
  3. Lift the air cleaner housing cover off the housing and position aside.
  4. Remove the air cleaner element (1).
  5. Remove any dirt or debris from the bottom of the air cleaner housing.
