Section 2 (Front Axle): Description: Description
WARNING: This page is about a different variant/trim than selected.

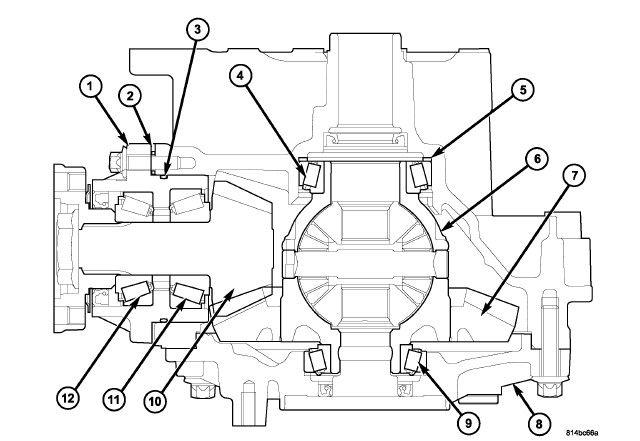

| 1 - PINION HOUSING ASSEMBLY | 7 - RING GEAR |
| 2 - SHIM, PINION DEPTH | 8 - COVER, AXLE |
| 3 - O-RING SEAL, PINION HOUSING | 9 - BEARING, DIFFERENTIAL SIDE (SMALL) |
| 4 - BEARING, DIFFERENTIAL SIDE (LARGE) | 10 - GEAR, PINION |
| 5 - SHIM, SELECT | 11 - BEARING, PINION HEAD |
| 6 - DIFFERENTIAL ASSEMBLY | 12 - BEARING, PINION TAIL |
The 175MM FIA (Front Independent Aluminum). is an independent assembly with an aluminum housing and cast iron differential. The 175MM FIA uses an open differential which is supported by two tapered roller bearings located on either side of the case. Differential bearing preload and ring gear backlash are controlled with select shims located on the outside of the differential bearing cups. Pinion height is set with a select shim sandwiched between the pinion housing assembly and the axle housing.

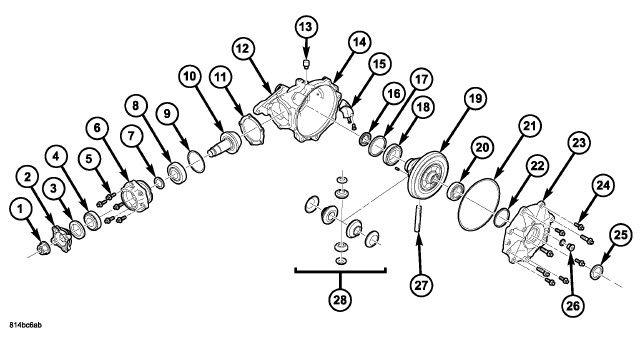

| 1 - NUT, PINION FLANGE1 | 15 - BAFFLE, VENT |
| 2 - FLANGE, PINION | 16 - SEAL, AXLE |
| 3 - SEAL, PINION | 17 - SHIM, PRELOAD |
| 4 - BEARING, PINION TAIL | 18 - BEARING, DIFFERENTIAL SIDE |
| 5 - BOLT, PINION HOUSING | 19 - ASSEMBLY, RING GEAR/DIFFERENTIAL |
| 6 - HOUSING, PINION | 20 - BEARING, DIFFERENTIAL SIDE |
| 7 - SPACER, SELECT | 21 - SEAL, AXLE COVER O-RING |
| 8 - BEARING, PINION HEAD | 22 - SHIM, BEARING PRELOAD |
| 9 - SEAL, PINION HOUSING O-RING | 23 - COVER, AXLE HOUSING |
| 10 - GEAR, PINION | 24 - BOLT, AXLE HOUSING COVER |
| 11 - SHIM, PINION DEPTH (SELECT) | 25 - SEAL, AXLE |
| 12 - HOUSING, AXLE | 26 - PLUG, AXLE FILL |
| 13 - VENT, HOUSING | 27 - SHAFT, DIFFERENTIAL PINION |
| 14 - HOUSING, AXLE | 28 - SIDE GEAR ASSEMBLY |
The 175MM FIA Axle is available only in All-Wheel Drive models, and only in a 3:07:1 ratio. Refer to Fig 2.
