Diagnostic Test

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK TO SEE IF DTC P0721 IS CURRENT
    1. Turn the ignition OFF to the LOCK position.
      CAUTION:

      Properly support the vehicle and raise all drive wheels off the ground.

    2. Release the parking brake.
    3. Start the engine in park.
    4. Place the transmission gear selector in drive and release foot from brake.
      WARNING:

      Be sure to keep hands and feet clear of rotating wheels.

    5. With the scan tool, monitor the Output Speed Sensor RPM.

      Is the Output Speed Sensor RPM below 100 RPM?

      Yes

      • Go To  2

      No

      • Go To  9
  2. OUTPUT SPEED SENSOR
    1. Turn the ignition OFF to the LOCK position.
    2. Remove the Ignition Switch Feed fuse from the TIPM.
      CAUTION:

      Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

      WARNING:

      The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.

    3. Install the (special tool #8333B, Simulator, Transmission).
    4. Ignition ON, Engine Not Running.
    5. With the Transmission Simulator, set the selector switch to 3000/1000 and the Input/Output switch to ON.
    6. With the scan tool, monitor the Input and Output Speed Sensor RPM

      Does the Input Speed read 3, 000 RPM and the Output Speed read 1, 000 RPM, ± 50 RPM?

      Yes

      No

      • Go To  3
  3. CHECK THE (T14) OUTPUT SPEED SENSOR SIGNAL CIRCUIT FOR AN OPEN

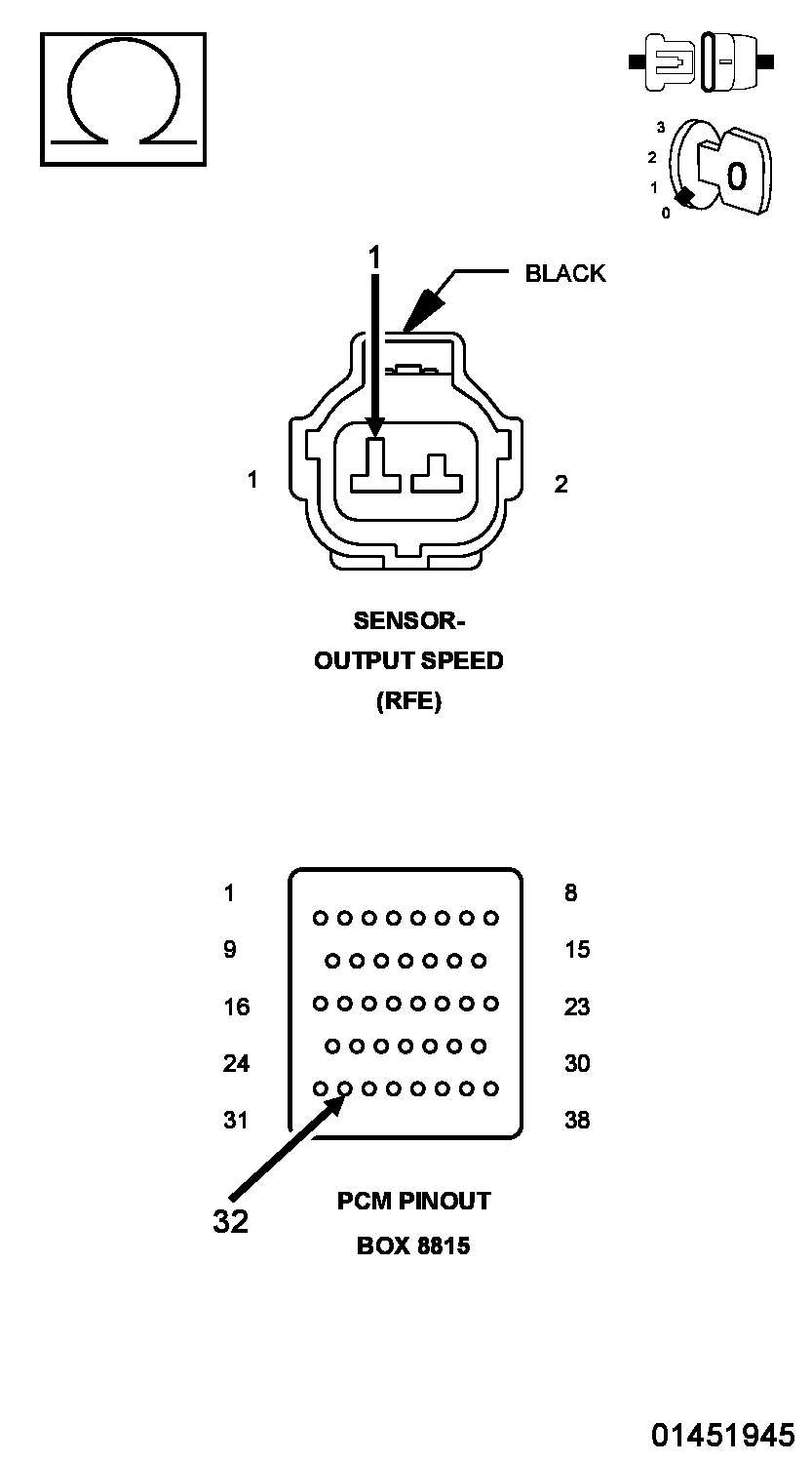

    Fig 1: Checking Output Speed Sensor Signal Circuit For Open
    GC0090568Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition OFF to the LOCK position.
    2. Disconnect the (special tool #8333B, Simulator, Transmission).
    3. Disconnect the PCM harness connectors and connect the (special tool #8815A, Kit, NGC, 38 Position).
      CAUTION:

      Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the Miller tool 8815A to perform diagnosis.

    4. Measure the resistance of the (T14) Output Speed Sensor Signal circuit from the Output Speed Sensor harness connector to the appropriate terminal of the (special tool #8815A, Kit, NGC, 38 Position).

      Is the resistance above 5.0 Ohms?

      Yes

      No

      • Go To  4
  4. CHECK THE (T13) SPEED SENSOR GROUND CIRCUIT FOR AN OPEN

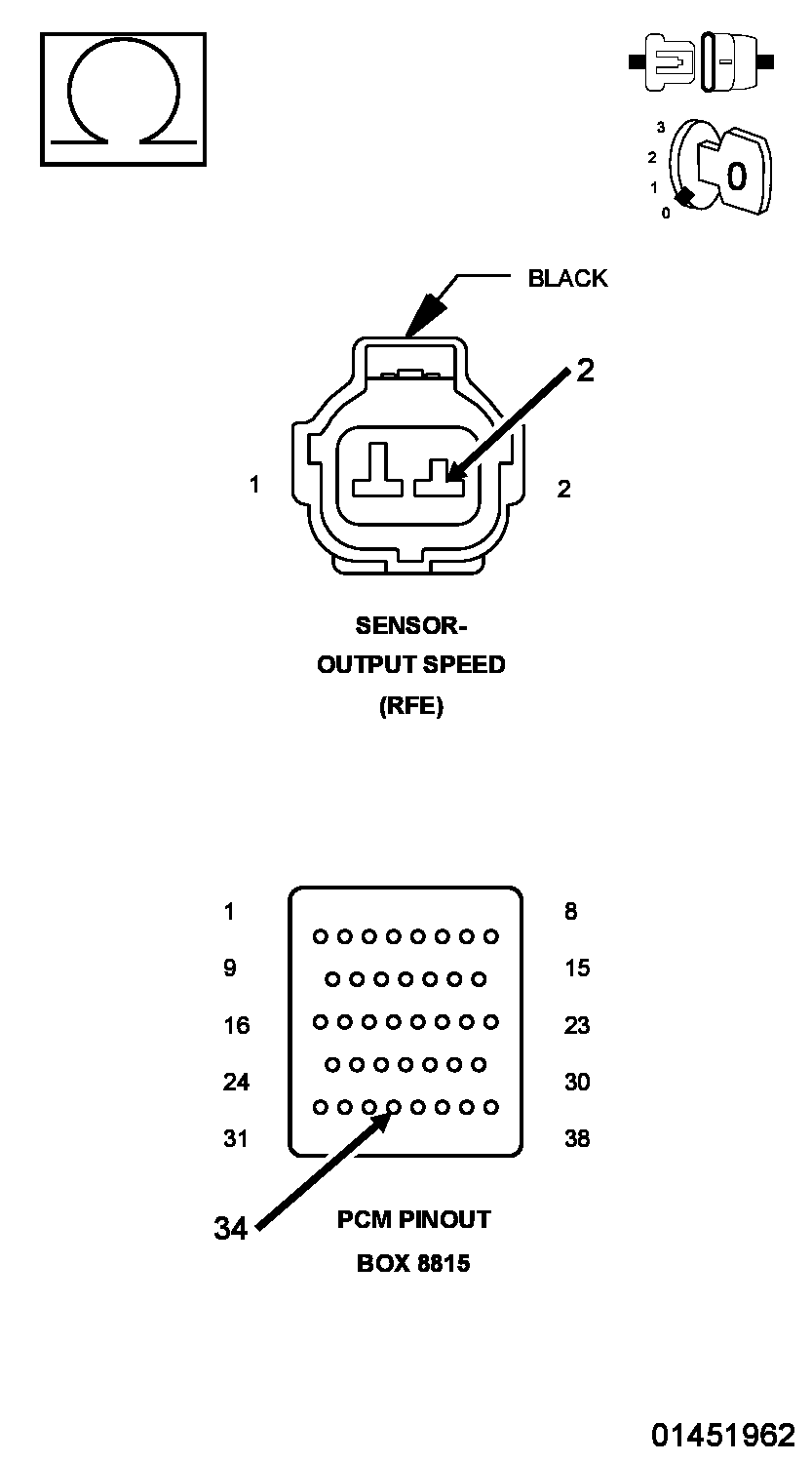

    Fig 2: Checking Output Speed Sensor Signal Circuit For Open
    GC0090569Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (T13) Speed Sensor Ground circuit from the Output Speed Sensor harness connector to the appropriate terminal in the (special tool #8815A, Kit, NGC, 38 Position).

      Is the resistance above 5.0 ohms?

      Yes

      No

      • Go To  5
  5. CHECK THE (T14) OUTPUT SPEED SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

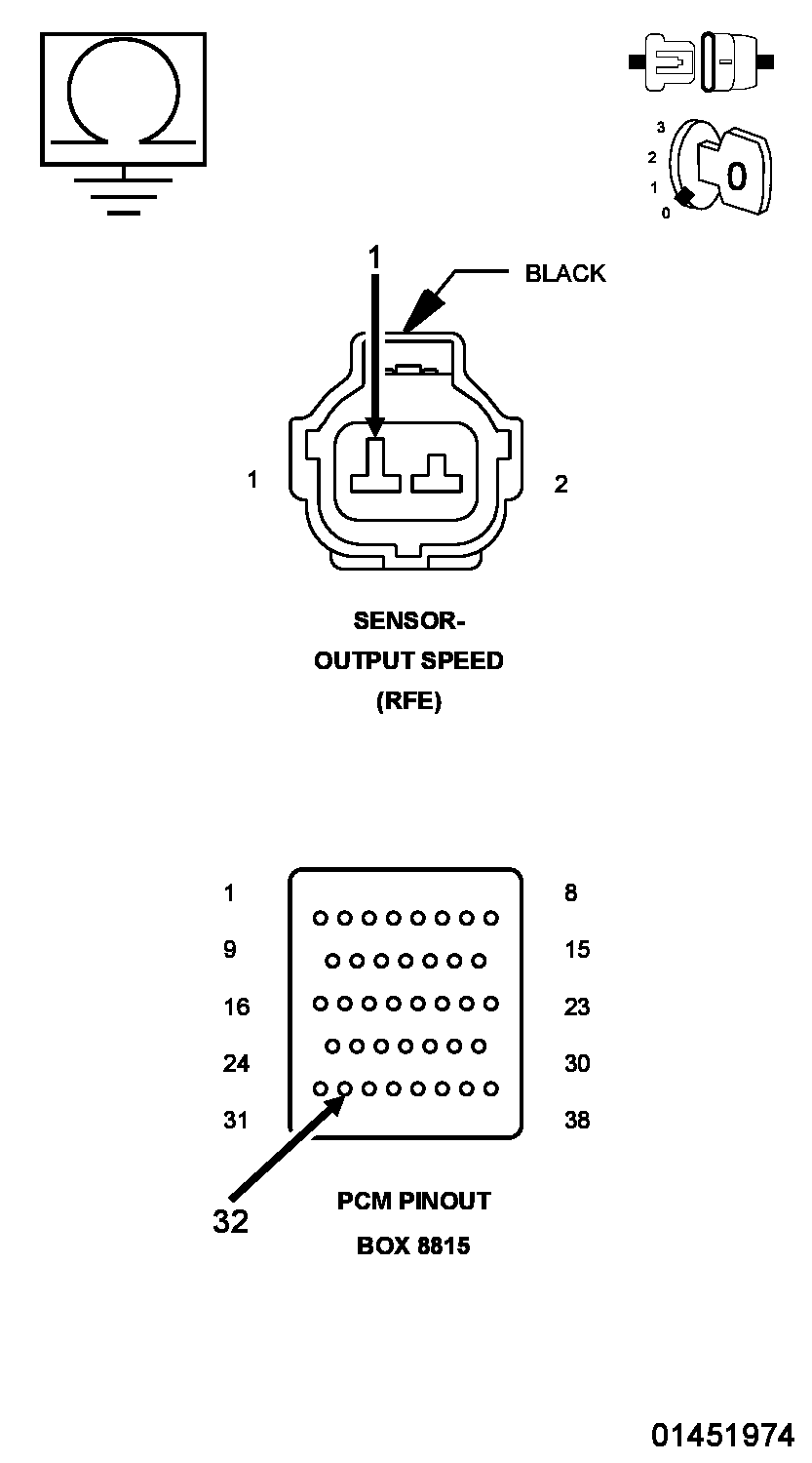

    Fig 3: Checking Output Speed Sensor Signal Circuit For Short To Ground
    GC0090570Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between ground and the (T14) Output Speed Sensor Signal circuit.

      Is the resistance below 5.0 ohms?

      Yes

      No

      • Go To  6
  6. CHECK THE (T13) SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO GROUND
    Fig 4: Checking Speed Sensor Ground Circuit For Short To Ground
    GC0090567Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between ground and the (T13) Speed Sensor Ground circuit.

      Is the resistance below 5.0 ohms?

      Yes

      No

      • Go To  7
  7. CHECK THE (T14) OUTPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

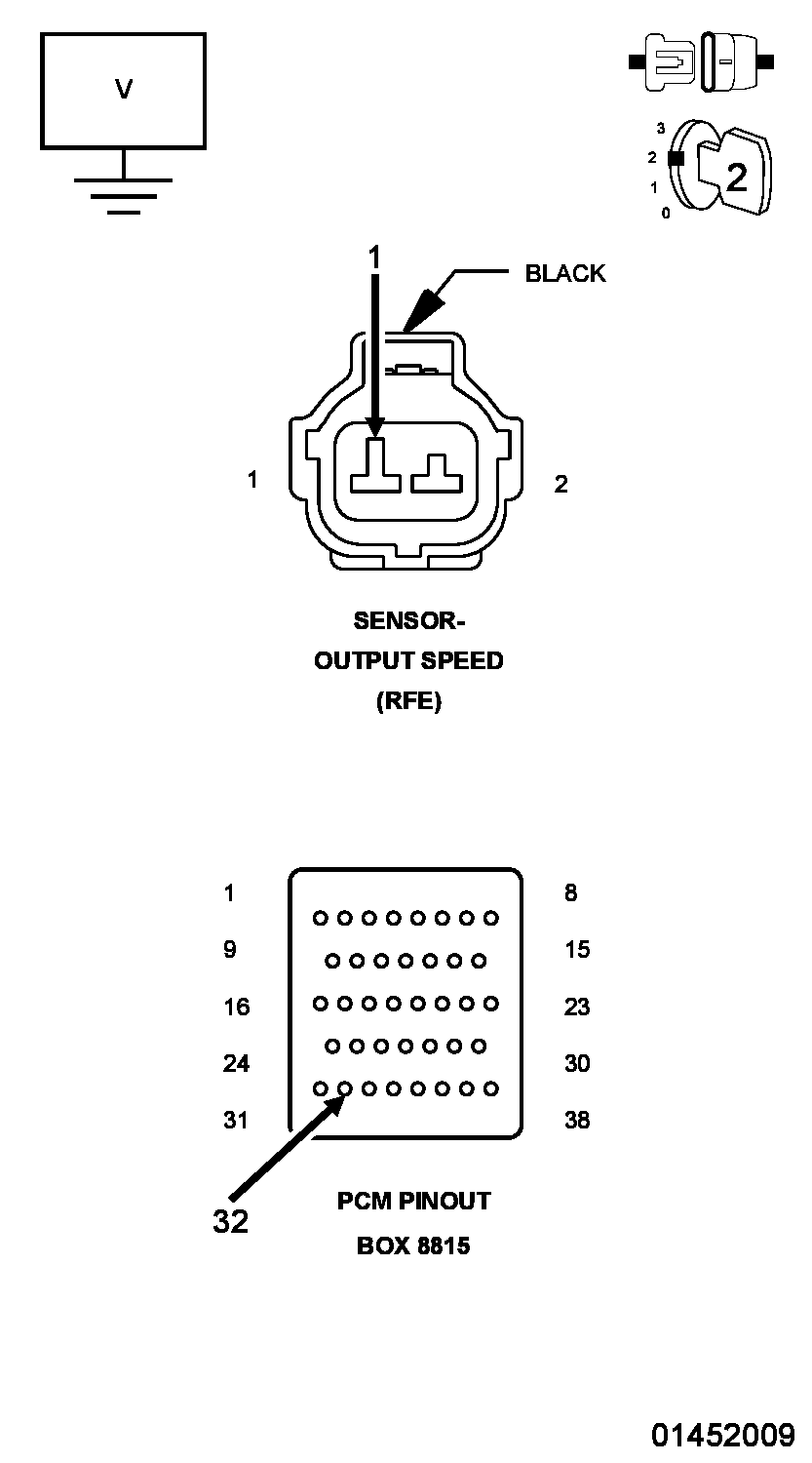

    Fig 5: Checking Output Speed Sensor Signal Circuit For Short To Voltage
    GC0090571Courtesy of CHRYSLER GROUP, LLC
    1. Ignition ON, Engine Not Running.
    2. With the scan tool in TIPM, actuate the TCM output.
    3. Measure the voltage of the (T14) Output Speed Sensor Signal circuit.

      Is the voltage above 0.5 volts?

      Yes

      No

      • Go To  8
  8. CHECK THE (T13) SPEED SENSOR GROUND CIRCUIT FOR A SHORT TO VOLTAGE

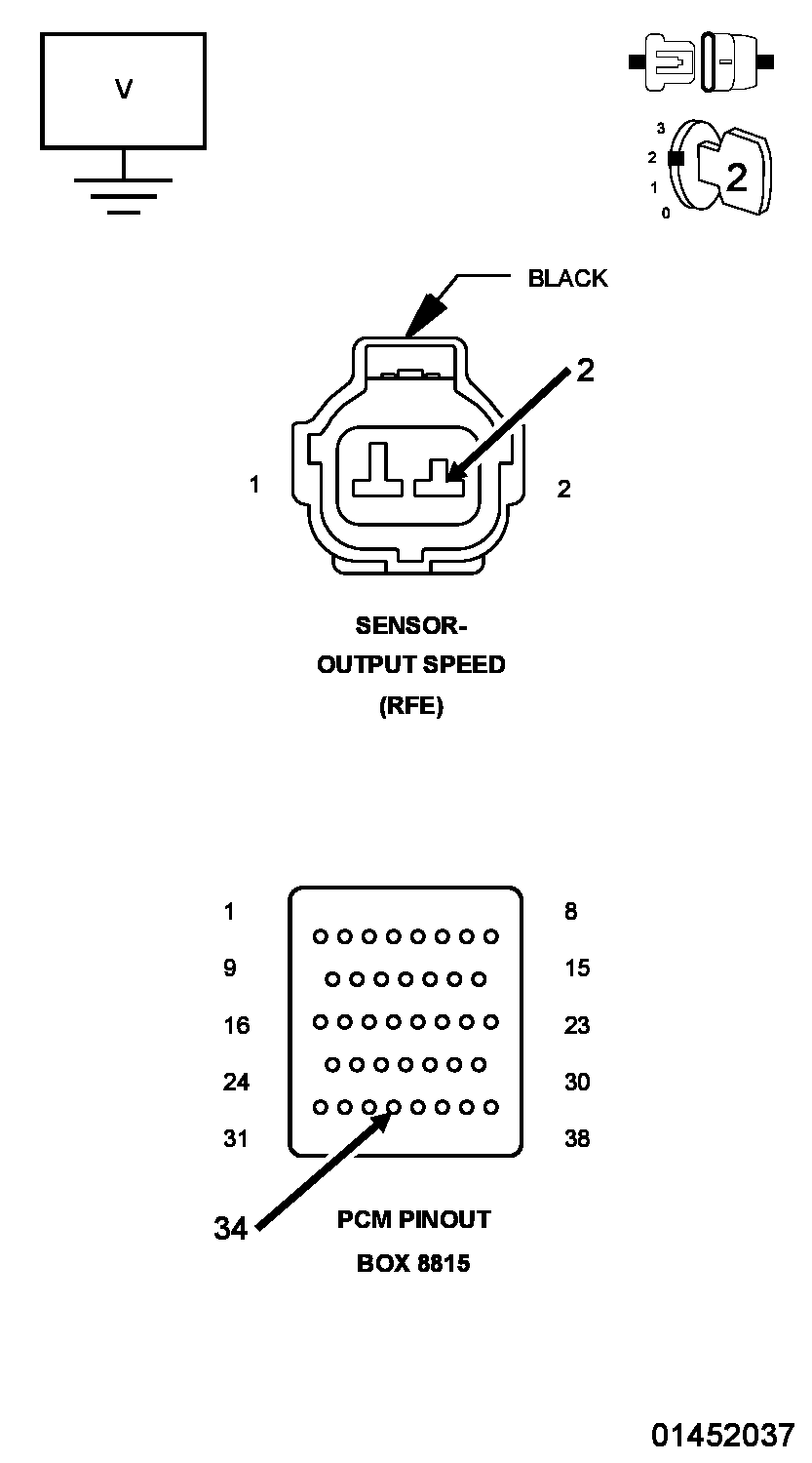

    Fig 6: Checking Output Speed Sensor Ground Circuit For Short To Voltage
    GC0090572Courtesy of CHRYSLER GROUP, LLC
    1. With the scan tool in TIPM, actuate the TCM output.
    2. Measure the voltage of the (T13) Speed Sensor Ground circuit.

      Is the voltage above 0.5 volts?

      Yes

      No

      • Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM in accordance with the Service Information. With the scan tool, perform a Quick Learn.
      • Perform the 66RFE TRANSMISSION VERIFICATION TEST. Refer to 66RFE TRANSMISSION VERIFICATION TEST .
  9. CHECK THE WIRING AND CONNECTORS
    1. The conditions necessary to set this DTC are not present at this time.
    2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
    3. Wiggle the wires while checking for shorted and open circuits.
    4. With the scan tool, check the Event Data to help identify the conditions in which the DTC set.

      Were any problems found?

      Yes

      No

      • Test Complete.
