Valve Body: Description: Description

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

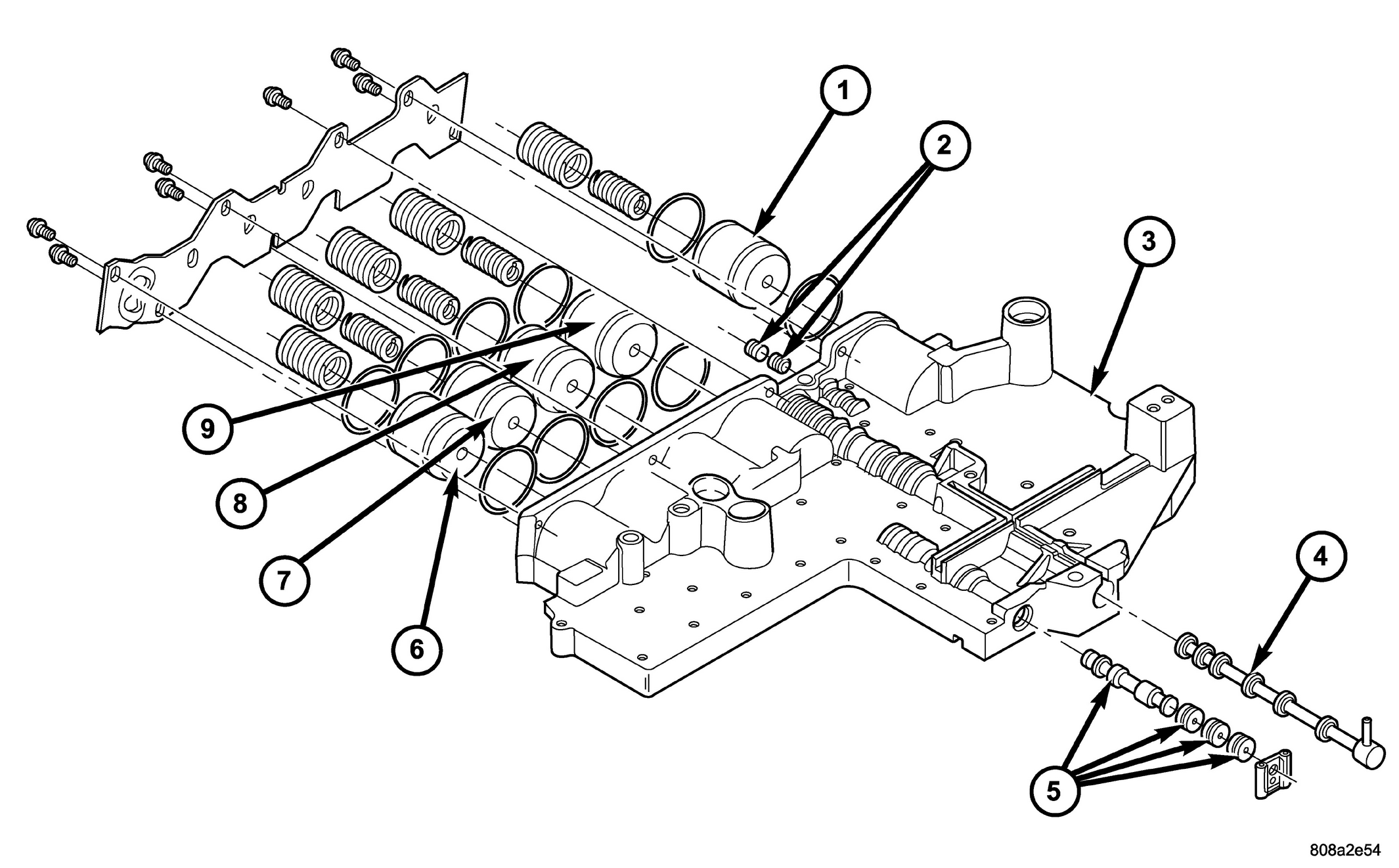

Fig 1: Exploded View Of Upper Valve Body Components

Courtesy of CHRYSLER GROUP, LLC

1 - LOW/REVERSE ACCUMULATOR

2 - LOW/REVERSE SHUTTLE VALVE AND PLUG

3 - UPPER VALVE BODY

4 - MANUAL VALVE

5 - SOLENOID SWITCH VALVE AND PLUGS

6 - OVERDRIVE ACCUMULATOR

7 - UNDERDRIVE ACCUMULATOR

8 - 4C ACCUMULATOR

9 - 2C ACCUMULATOR

The valve body consists of a cast aluminum valve body, a separator plate, and a transfer plate. The valve body contains valves and check balls that control fluid delivery to the torque converter clutch and frictional clutches. The valve body contains the following components:

Solenoid switch valve
Manual valve
Low/reverse shuttle valve
5 Accumulators

Fig 2: Check Ball Locations

Courtesy of CHRYSLER GROUP, LLC

5 check balls
