Seal, Adapter Housing: Installation: Installation
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On the 2WD models use Seal Installer (special tool #8154, Installer, Seal) with Handle (special tool #C-4171, Driver Handle, Universal).

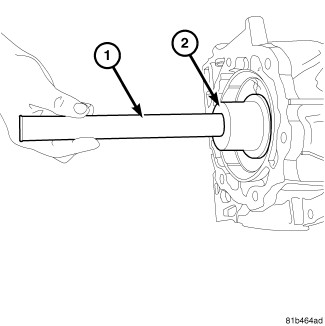

| 1 - HANDLE C-4171 |
| 2 - SEAL INSTALLER 10020 |
- Clean the seal bore in the extension housing of any residue or particles remaining from the original seal.
- Install new oil seal in the extension housing using Handle (special tool #C-4171, Driver Handle, Universal) (1) and Seal Installer (special tool #10020, Installer, Seal) (2).
