Holding Clutches: Description: Description

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 68RFE Clutch Orientation

Courtesy of CHRYSLER GROUP, LLC

1 - U/D CLUTCH

2 - O/D CLUTCH

3 - REVERSE CLUTCH

4 - 4C CLUTCH

5 - 2C CLUTCH

6 - L/R CLUTCH

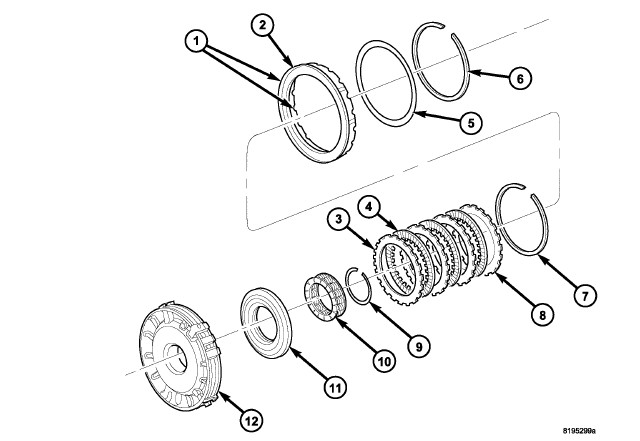

Fig 2: 2/4 Clutches

Courtesy of CHRYSLER GROUP, LLC

1 - SEALS

2 - 2C PISTON

3 - PLATE

4 - DISC

5 - 2C BELLEVILLE SPRING

6 - SNAP-RING

7 - SNAP-RING (SELECT)

8 - REACTION PLATE

9 - SNAP-RING

10 - RETURN SPRING

11 - 4C PISTON

12 - 4C RETAINER/BULKHEAD

Fig 3: Low/Reverse Clutch

Courtesy of CHRYSLER GROUP, LLC

1 - OVERRUNNING CLUTCH

2 - SNAP RING (SELECTIVE)

3 - REACTION PLATE

4 - DISC

5 - PLATE

6 - RETAINER

7 - BELLEVILLE SPRING

8 - PISTON

9 - L/R CLUTCH RETAINER

10 - BLEED ORIFICE

Three hydraulically applied multi-disc clutches are used to hold some planetary geartrain components stationary while the input clutches drive others. The 2C, 4C, and Low/Reverse clutches are considered holding clutches. The 2C and 4C clutches are located in the 4C retainer/bulkhead (12).

The Low/Reverse clutch is located at the rear of the transmission case.
