Cover, Oil Pump: Removal: Removal
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

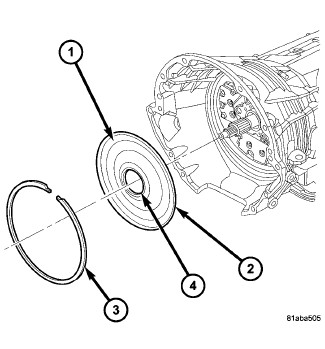

| 1 - FRONT COVER |
| 2 - O - RING |
| 3 - SNAP RING |
| 4 - FRONT COVER SEAL |
- Remove the bolts holding the transmission oil pan to the transmission case.
- Remove the transmission oil pan from the transmission case.
- Remove the snap ring (3) from the transmission case.
- Reaching through a case opening in the valve body area with a long blunted tool, remove the transmission front cover (1) from the transmission case.
