Valve, Short Runner: Removal: 6.4L

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Battery

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable (1).

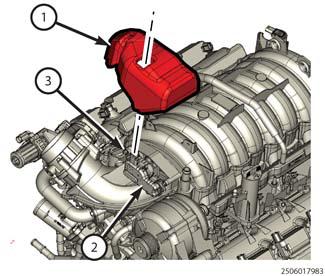

Fig 2: Short Runner Valve Components
Courtesy of CHRYSLER GROUP, LLC
Remove the Short Runner Valve (SRV) cover (1).
Remove the short runner valve actuator retaining bolts (3) and remove valve.

Fig 3: Short Runner Valve Actuator Rubber O-Ring Seal
Courtesy of CHRYSLER GROUP, LLC
Remove and discard the short runner valve actuator rubber O-ring seal (1).
