Sensor, Air Temperature, Intake: Installation: 6.4L

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

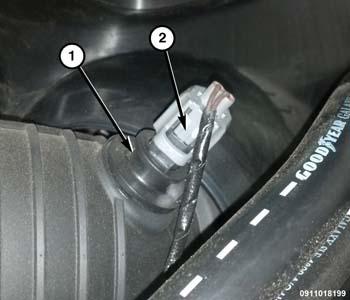

Fig 1: IAT Sensor & Electrical Connector - 6.4L

Courtesy of CHRYSLER GROUP, LLC

The intake manifold air temperature (IAT) sensor (1) is installed into the front of the intake manifold air box plenum.

Check condition of sensor O-ring.
Clean sensor mounting hole in intake manifold.
Position sensor into intake manifold and rotate clockwise until past release tab.
Install electrical connector.
