Actuator, Fuel Control: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Injection Pump Components - Rear View

Courtesy of CHRYSLER GROUP, LLC

Lubricate the new Fuel Control Actuator (FCA) O-ring with clean oil.
Install the FCA into the fuel injection pump. Tighten screws (1) to 7 N.m (62 in. lbs.).

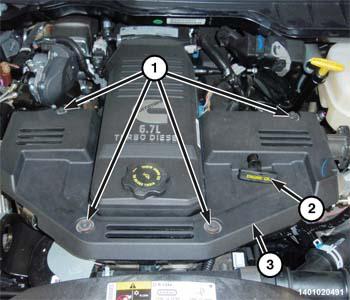

Fig 2: Engine Cover, Bolts & Oil Dipstick
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (3). Tighten bolts (1) to 10 N.m (89 in. lbs.).
Install the engine oil dipstick (2).
Connect both of the negative battery cables.
